Fuel Sensor H.265 HDD 4 Channel 1080P RJ45 Port HD Mobile DVR with Motion detection

Name: Fuel Sensor H265 HDD 4 Channel 1080P RJ45 Port HD Mobile DVR with Motion detection
Brand: Vanwin Tracking
Price: 1 USD

China Fuel Sensor H.265 HDD 4 Channel 1080P RJ45 Port HD Mobile DVR with Motion detection wholesale

Brand Name : Vanwin Tracking

Model Number : VW918HD

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen,China

MOQ : 1pc

Price : negotiated

Payment Terms : T/T or western Union or Paypal

Supply Ability : 5,000pcs per month; H.265 HDD 4 Channel Mobile HD dvr with Fuel Sensor, Intercom for Truck

Delivery Time : 2-3 days for samples,15-30 days for large orders

Packaging Details : Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .

Power Supply : 8V-36V

Storage Capacity : HDD/SSD, can support 2TB

Software Support : Client, Server, Playback Software

Applicable : Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining truck fleets

Basic Function : 4 1080P cameras monitoring with 3G/4G real time, GPS tracking, Wi-Fi

Cameras : 1~4 Analog or AHD 720P/ 960P/ 1080P cameras

Video Format : H265

Power-off protection : Support

Motion Detection : Support

Overpower protection : Support

G-sensor : Support

RJ45 port : Support

Contact Now

Fuel Sensor H.265 HDD 4 Channel 1080P RJ45 Port HD Mobile DVR with Motion detection

1. The MDVR VW918HD is a cost-effective and high extendibility mobile digital video recorder (MDVR), developed especially for vehicle monitoring and remote video surveillance.

2. It adopts HIS solution and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI.

3. It supports 1080p,720p,D1 resolution video recording, vehicle driving record and video remote uploading.

4. With the central software can do central remote monitoring based on alarm linkage, vehicle intelligent dispatch management and playback analysis based on central database.

5. This device is competitive in anti-vibration, more rich function, high reliability, concise appearance and simple to deploy.

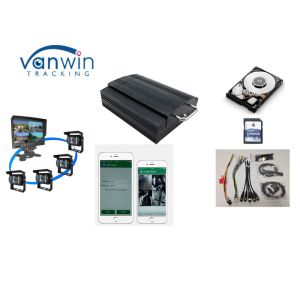

The complete system includes:

1. One 4CH MDVR with 4G/3G GPS WIFI G-sensor for Option

2. 4 1080p / 960p cameras with extension cables

3. One monitor for the driver

4. HDD 500GB/1TB/2TB, max support 256GB SD Card

5. Micphone, Talkback device, Panic button

HD Mobile DVR Main Features

Built-in high performance Hisilicon chipsets, coded with H.265 standard, high compression rate and image quality
AHD/TVI/CVI/IPC/ANALOG five in one video input, wide compliance
Support 4CH + 1CH 1080P IPC, support ONVIF protocol
1CH synchronized AV output, 1CH VGA output
Support hard disk heating system (optional)
Support firebox (optional)
Support UPS power input
Built-in G-sensor, monitor the driving habits
Reverse Assistance
Adjust the camera image horizontally and vertically
Adjust the camera image 90 degrees

Main Specification

SYSTEM		LINUX
TV MODE		PAL/NTSC
COMPRESSION		H.265
RESOLUTION		1920*1080
SPECIAL FUNCTION		4G/GPS/WIFI
CMS SOFTWARE		OFFERED FOR FREE
RECORDING MODE		POWER UP, MANUAL,SCHEDULED,MOTION DETECTION,ALARM
MEMORY TYPE		HDD/SSD+SD Card
POWER INPUT		8V-36V
POWER OUTPUT		12V
SYSTEM UPGRADE		SUPPORT

Fuel Sensor H.265 HDD 4 Channel 1080P RJ45 Port HD Mobile DVR with Motion detection

H.265 vs H.264: Differences between H.265 and H.264

	H.265/HEVC	H.264/AVC
Lunch Date	2013	2003
Basic bandwidth requirement for 4K transmission (Lower means better)	14mbps	32mbps
Storage Needs for same quality video	Take only 1/2 of the storage space needed by H.264	Massive waste to storage space compare to H.265
Video block unit size optimization	Combination of Coding Unit/ Prediction Unit and Transition Unit	Fixed block size partitioning & inter partitions of blocks
Deblocking Filter	Sample Adaptive Offset (SAO)	Loop filter(LPF)
Maximum resolution (in pixel)	7680 x 4320	4096 × 2048(only in 30 or below frames)
Key improvement (compare to their predecessor)	* 40-50% bit rate reduction compared with H.264 at the same visual quality * It is likely to implement Ultra HD, 2K, 4K for Broadcast and Online (OTT)	* 40-50% bit rate reduction compared with MPEG-2 Part * Available to deliver HD sources for Broadcast and Online
Support up to 300 fps	Yes	No. support up to 59.94 fps only.

Why you need H265 Mobile HD DVR?

Fuel Sensor H.265 HDD 4 Channel 1080P RJ45 Port HD Mobile DVR with Motion detection

Installing Cases from Customers

Fuel Sensor H.265 HDD 4 Channel 1080P RJ45 Port HD Mobile DVR with Motion detection

HD Video welcome to view it in the link: https://youtu.be/TfEbHKxrNPQ
